EXFO MAX-710B SM OTDR with software iOLM 1310/1550nm

FOB Reference Price:Get Latest Price
US $2,700-3,300 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Quick Details
Place of Origin:
Brand Name:
Model Number:
MaxTester 710B/715B
fiber tester
10 Set/Sets per Week
Packaging & Delivery
Packaging Details
standard packing
Lead Time :
1-3 days on receipt of payment

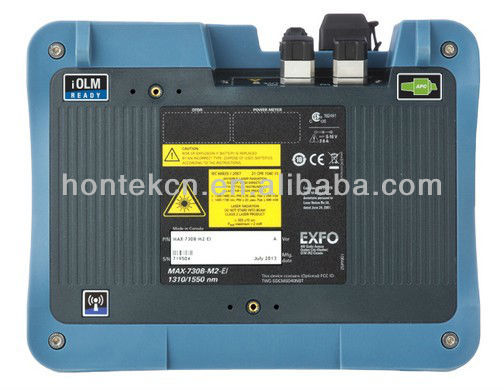

EXFO MAX-710B SM  OTDR with software iOLM 1310/1550nm



Contact information

Fax: 0086-755-33503470





Brand New EXFO MAXTESTER MAX 710B-M1 SM OTDR Touch Screen 1310/1550NM,32/30DB



The Max-710B is a genuine last-mile OTDR from the world’s leading manufacturer. It delivers EXFO’s tried and true OTDR quality and accuracy along with the best optical performance for first-time-right results, every time. It is optimized for the point-to-point testing and troubleshooting of FTTx architectures, and is ideal for testing short fibers (e.g., inside a CO environment or at FTTA/DAS network installations).



  • Handy, lightweight, powerful, tablet-inspired design
  • 7-inch, outdoor-enhanced touchscreen – the biggest in
  • the handheld industry
  • 12-hour autonomy
  • Dead zones: EDZ 1 m, ADZ 4 m
  • Dynamic range of 30/28 dB
  • Rugged design built for outside plant




Two USB 2.0 ports
RJ-45 LAN 10/100 Mbit/s

Storage2 GB internal memory (20 000 OTDR traces, typical)

Rechargeable lithium-polymer battery
12 hours of operation as per Telcordia (Bellcore) TR-NWT-001138

Power supplyPower supply AC/DC adapter, input 100-240 VAC, 50-60 Hz, 9-16 V DCIN 15 Watts minimum
Dynamic range30/28dB
Event dead zone1m
Attenuation dead zone4m
Distance range0.1 to 160 km
Pulse width5 ns to 20 us


Loss threshold0.01dB
Loss resolution0.001dB
Sampling resolution0.04 to 5m
Sampling pointsUp to 256 000


OTDROTDR Base Software
OTDR Features:
 - Macrobend detection
 - Linear View
 - Summary screen
 - Source mode

 ! OTDR base software will be the one included by Default
    if no base software is specified when ordering.
iOLMIntelligent Optical Link Mapper Base Software

iOLM features:
 - Source mode

 ! OTDR base software will be the one included by Default
    if no base software is specified when ordering.
 ! On singlemode port, iOLM comes only in EA (APC) interface.
   An hybrid test jumper will be supplied when a EI (UPC) interface
    is selected.

 - On singlemode port:  iOLM will be delivered with an APC interface. On singlemode ports, APC interface on an iOLM and OTDR ensures maximum measurement efficiency. UPC connectors are prone to be highly reflective if dirty or worn. Reflectance of the unit connector will dramatically limit the performance of the measurement. Worn UPC will create a permanent degradation of the unit capabilities  until the output connector is replaced. APC interface can handle wearing and dirt without being highly reflective. Testing a UPC network doesn’t require a UPC OTDR, simply use a APC-UPC test jumper  supplied with the unit when UPC interface is ordered.
- On multimode port: iOLM will be delivered with an UPC interface. It is recommended to keep the connector always clean to prevent any limitations of the performances.
OiOTDR + iOLM base software package
    - Real Time OTDR mode via iOLM application.
    - Optimode Short Link Closed Event
      (does not require iADV software option to be activated)
   Includes the following options:
 › iOLM

 ! OTDR base software will be the one included by Default
    if no base software is specified when ordering.
 ! Refer to the description of each included option for more details.
Discount price when in combo with iOLM Advanced Pack (iADV)
Discount price when in combo with iOLM Pro Pack (iPRO)
