CORE to CORE alignment usa COMWAY C10 fusion splicer machine

FOB Reference Price:Get Latest Price
US $2,000-4,500 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
United States
Brand Name:
COMWAY
Model Number:
C10
Place of Origin::
USA
Brand Name::
COMWAY
Model Number::
C10
Fiber Display:::
X/Y or XY,single X,Y .
tention ::
1.96-2.25N
Battery module:
7800mAh
Electrode life:
3500 arc discharges
Splice mode:
Single fiber
item1:
fusionadora
SupplyAbility
SupplyAbility:
10 Set/Sets per Day
Packaging & Delivery
Packaging Details
standard packing
Port
Hongkong
Lead Time :
in stock

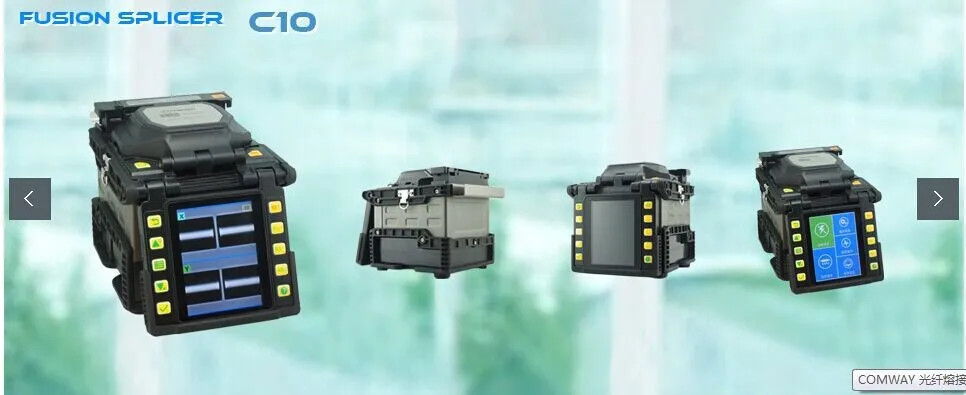

USA brand COMWAY C10 fusion splicer
CORE to CORE alignment



IN STOCK!




contact information

Jim zheng

Skype:  honserv

WhatsApp: +8613728095480
















Feature:

Core-to-Core alignment system
Splicing 6 sec., heating 12 sec.
Fast boot technology
More than 350 times splicing and heating
Resist dust, rain, wind, and shock

Fiber type identify, AUTO splicing mode
Easy to change electrode and fiber holder
High speed USB, maintenance via the Internet





standard accessories:
1. C10 main body
2. High capacity battery
3. AC adapter
4. Extra electrode
5. Cooling tray
6. AC adapter cable

7. DC adapter cable
8. USB cable
9. Hand strap
10. Shoulder strap
11. Carrying case





Size & Weight

D156×W135×H149(mm), 2.0kg without battery, 2.5kg with 7800mAh

Fiber alignment

6 motors core alignment

Fiber type

SM(ITU-T G.652), MM(ITU-T G.651), DS(ITU-T G.653), NZ/NZDS(ITU-T G.655), BI(ITU-T G.657)

Splice mode

Single fiber

Fiber diameter

Cladding diameter 80~150µm, coating 100~1000µm

Cleave length

250µm cladding diameter 8~16mm,

over 250µm cladding diameter 16mm

Splicing programs

Max. 100

Splicing cycle time

6 sec. SM-SM Fast program,

12 sec. AUTO program

Heating programs

Max. 30

Heating cycle time

Adjustable, 25 sec. typical

Splice protector

10 ~ 60mm

Splice image capture

Max. 30

Splice data storage

Max. 3000

Splice loss

SM:0.02dB, MM:0.01dB, DS:0.04dB, NZ/NZDS:0.04dB, BI:0.02dB

Return loss

>>60dB

Loss estination

Provided

Operation condition

Altitude 0~5000m, Humidity 0~95%,Temperature,-10~+50°C,

Wind velocity up to 15m/s

Storage condition

Humidity 0~95%, Temperature -40~+80°C (Battery -10~+40°C)

Tension

1.96~2.25N

Fiber view

Two cameras observation,

4.1 inch color screen

Fiber magnification

300x fo X or Y single axis view,

180x for both X&Y dual axis view

Port

High speed USB, used for PC software connection and firmware upgrade

Electrode life

3500 arc discharges

Power supply

AC100-240V, 50/60Hz

Battery module

7800mAh High capacity battery,

more than 300 times splicing and heating
